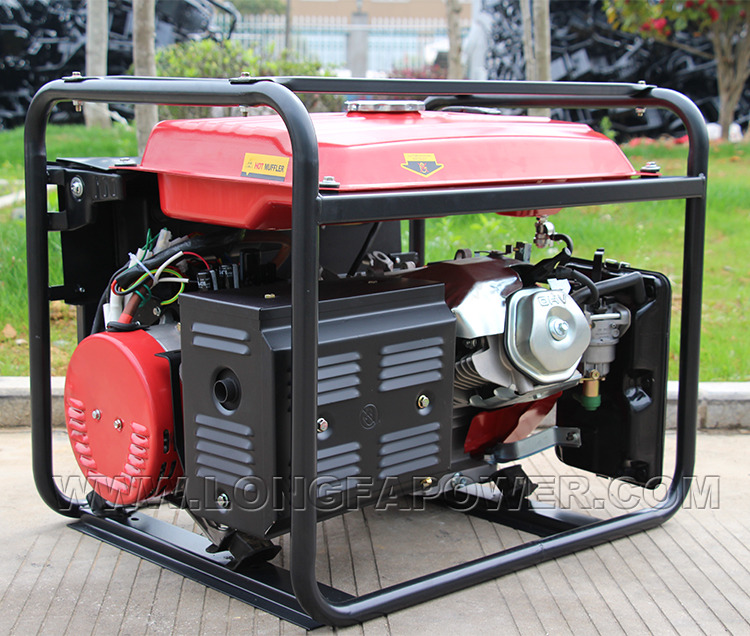

Name: 5kw 200 300 Amp Petrol Gasoline Welding Welder Portable Generator SH190
Brand: 5kw 200 300 Amp Petrol Gasoline Welding Welder Portable Generator SH190
SKU: SH190
Price: 1 USD
Availability: InStock
Rating: 4.9 (174 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Model Number: SH190

Rated Power: 5KW

Output Type: AC Single Phase

Rated Voltage: 110/120/220/230/240V

Speed: 3600rpm

Frequency: 50/60HZ

Color: All colors is optional

Rating frequency(Hz): 50/60hz

The voltage: 110/120/220/230/240 V

Power Output: 5kW

Start System: Hand Start (Recoil)

Power factor(cos): 1.0

Package: Strong Carton Package

Certificate: CE / SONCAP / ISO9001

Informations de base

Certification: CE / SONCAP / ISO9001

Model Number: SH190

Conditions de paiement et expédition

Packaging Details: 5kw 200 300 amp portable gasoline petrol welding welder generator in One Standard Export Carton

Supply Ability: 5000 Set/Sets per Month

Description de produit

5kw 200 300 amp portable gasoline petrol welding welder generator

NAME	ITEM	SHW190	SHW210R	SHW300E
Engine	Engine Model	GX390		GX620
	Type	4-Stroke,OHV,1cylinda		4-Stroke,OHV,2 cylinda
	Displacement(CC)	389		614
	Bore x Stroke(mm)	88x64		77x72
	Cooling system	Air cooling
	Ignition system	Transistorized magneto ignition
	Start system	Recoil/Electric		Electric
Generator	Rated voltage(V)	220(AC)		220(DC)
	Rating frequency(Hz)	50/60 50/ 60		60
	Rated current	9.1A(AC)	15A(AC)	10.0A(DC)
	Rated output 50Hz	2.5kVA(AC)	3.0kVA(AC)	5.0kVA(AC)
	Rated output 60Hz	3kVA(AC)	3.5kVA(AC)	5.0kVA(AC)
	Rated power factor	0.8/1.0
	Phase	Single
	Type	2-pole,rotating type		24-pole,rotating type
DC Welder	Rated Max.current(A)	140	180	280
	Load voltage(V)	27.2	28	32
	Current range(A)	50-190	50-210	50-280
	Max.current duty cycle(%)	50	32	20
	Applicable welding rod diameter(mm)	2.5-5.0	2.5-5.0	2.5-6.0
	Rated Revolving Speed(r/min)	3600
	No-load voltage(A)	70	52	82
	Idle control	Automatic
	Rectifier type	Six phase half wave rectifier		Three phase full wave rectifier
Other	Fuel tank capacity(L)	17	25	30
	Length x width x height(mm)	690x510x520	690x535x535	953x617x622
	Net weight(kg)	86	88	180

1.Q:Are you a factory or trading company?
A:We are a factory.

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 3 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase

4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.

5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
