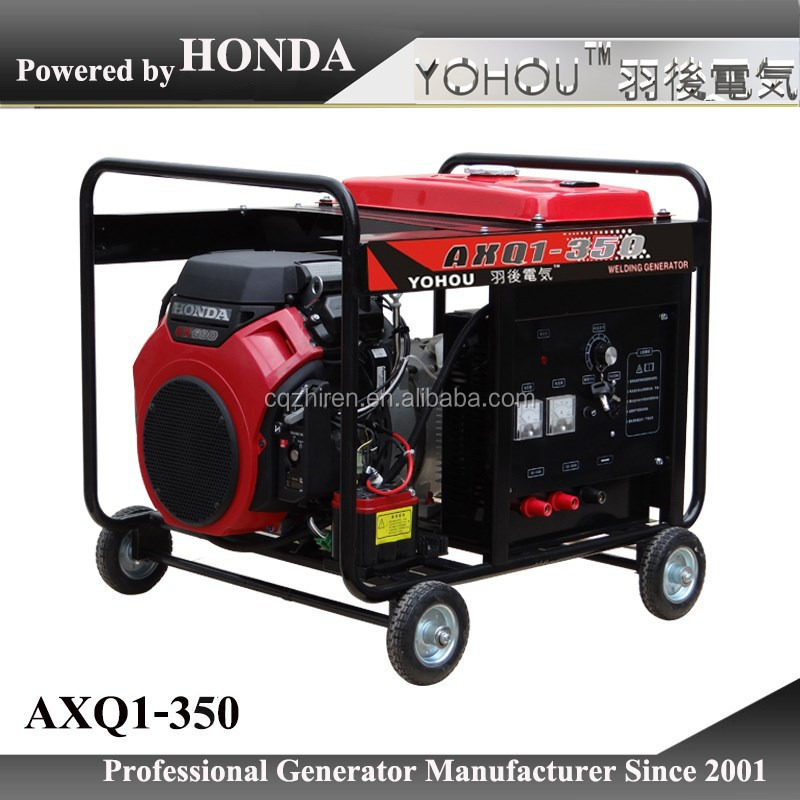

For Main Gasoline Motorized Welding Generator With Honda Engine

6.0 Units
MOQ
For Main Gasoline Motorized Welding Generator With Honda Engine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Model Number: AXQ1-350 AXQ1-300
Arc Current: 300A
Pulse Frequency: 720Hz
Pilot Arc Current: 300A
Rated Duty Cycle: 100%
Motor Type: DC MOTOR
Dimensions: 810 x 740 x 705 mm
Usage: for pipeline, railway, industry welding
Voltage: 220V
Power: 10kW
Warranty: one year warranty
After-sales Service Provided: Overseas third-party support available
Engine: HONDA GX690 /GX630
Color: Red
Start: Electric start
Oil alert system: Yes
Welding type: Hand welding or automatic
Power supply: DC220V
Fule: Gasoline
Name: gasoline welding generator
Product Name: gasoline welder
Specification: welding generator with honda engine
Informations de base
Model Number: AXQ1-350 AXQ1-300
Conditions de paiement et expédition
Packaging Details: carton
Supply Ability: 3000 Unit/Units per Month
Description de produit

220V 200A Gasoline engine driven welding generator with honda engine

Characteristic:

  • High frequency striking arc to avoid generating tungsten inclusion;
  • Equipped with HONDA GX630 /HONDA GX690 gasoline engine;
  • Light weight, easy to move;
  • Simple structure, low failure rate, ease of maintenance; arc gasoline welding generator

Technical Parameter

Welding Generator ModelAXQ1-300AXQ1-350
WelderNo-load Voltage (V)60-9060-90
Output Voltage (V)22-3222-34
Output Current Range (A)50-30050-350
Rated Duty Cycle (100%)100100
Electrode Diameter(Φmm)from 2 to 6from 2 to 8
Welding TypeHand weldingHand welding
Auxiliary Power SourceDC220V/3KWDC220V/3KW
EngineEngine BrandHONDA GX630
(Briggs Stratton 3584/
KOHLER CH20)
HONDA GX690
(Briggs Stratton 5404/
KOHLER CH730)
Fuel TypeGasolineGasoline
OHVOHVOHV
Displacement (CC)624725
Ignition Systemnon-contact transistorized ignitionnon-contact transistorized ignition
Fuel Tank Capacity (L)1515
Fuel Consumption (g/hp.hr)230265/270
Start TypeElectricElectric
Oil alert systemYesYes
Whole MachineNoise dB@ 7 m7575
Insulation ClassHH
Protection ClassIP21IP21
L x W x H (mm)810 x 740 x 705810 x 740 x 705
Net weight (kg)9092

FAQ

Company Profile

Chongqing Zhiren Electric Equipment Co.,Ltd. is a leading generator manufacturer dealing with the design (research and development), manufacture, supply and installation of high quality and innovative generator products and systems both for residential and commercial customers.

Established in 2001, our company is located in Jinfeng Electronic Information Industrial Park, Jiulongpo District, Chongqing, China.

With registered capital of 8 million U.S.dollars, the company covers an area of 50 Arc, with 24 000 square meters of modern workshop, an office building,

R&D center, advanced production equipment.

We can supply permanent magnet generator (1kw-300kw),

DC generator for telecommunication (50A, 100A, 200A), gasoline generator (1kw-20kw),

diesel generator (1kw-2000kw), silent generator (10kw-150kw), welding generator, mobile plant, etc.

The generator sets are powered by Briggs & Stratton, KOHLER, YAMAHA, HONDA, and other world famous engines.

Our products are widely used in the fields of telecommunication, railway, banks, power plant, military, industry, home use, etc.

We sincerely welcome customers from home and aboard to visit our company and cooperate with us.

Are you a factory or a trading company?

We are a professional and leading manufacturer.

Where are you company located in?

Our company is located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing City, adjoins Chongqing Xiyong Bonded Zone.

What products are you produce?

We specialize in gasoline generator, gasoline generator, silent generator, movable generator, welder and related products.

What’s your annual capacity?

About 250,000 units.

What’s the MOQ?

Generally speaking, MOQ is 10 sets; we advise you to purchase 1*20GP or 1*40HQ.

What’s the delivery time?

About 21 days. It’s up to the quantities you buy.
